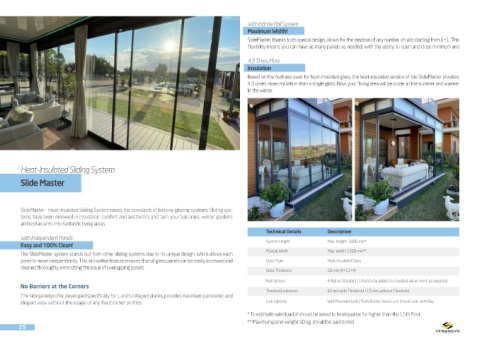

Page 25 - Veransys Catalogue ENG

With Infinite Rail System
Maximum Width!
SlideMaster, thanks to its special design, allows for the creation of any number of rails starting from 1+1. This
flexibility means you can have as many panels as needed, with the ability to open and close minimum and
4.3 Times More
Insulation
Based on the features used for heat-insulated glass, the heat-insulated version of the SlideMaster provides
4.3 times more insulation than a single glass. Now your “living area will be cooler in the summer and warmer
in the winter.

Heat-Insulated Sliding System

Slide Master

SlideMaster - Heat Insulated Sliding System raises the standards of balcony glazing systems. Sliding sys-
tems have been renewed in insulation, comfort and aesthetics and turn your balconies, winter gardens
and restaurants into fantastic living areas.
Technical Details Description
With Independent Panels
Easy and 100% Clean! System Height Max. Height: 3000 mm*
The SlideMaster system stands out from other sliding systems due to its unique design, which allows each Module Width Max. Width: 1500 mm**
panel to move independently. This innovative feature ensures that all glass panels can be easily accessed and Glass Type Heat-Insulated Glass
cleaned thoroughly, eliminating the issue of overlapping panels.
Glass Thickness 20 mm (4+12+4)
Rail Options 4 Rail as Standard | 1Rail (to be added to standard rail as much as required)
No Barriers at the Corners
Threshold solutions 42 mm with Threshold / 15 mm without Threshold
The side panel profile, developed specifically for L and U-shaped places, provides maximum panoramic and
elegant view without the usage of any fixed corner profiles. Lock Options Wall-Mounted Lock | Push Button Hook Lock | Hook Lock with Key
* To estimate wind load, it should be asked to headquarter for higher than the 15th floor.
** Maximum panel weight 90 kg. should be partitioned.
