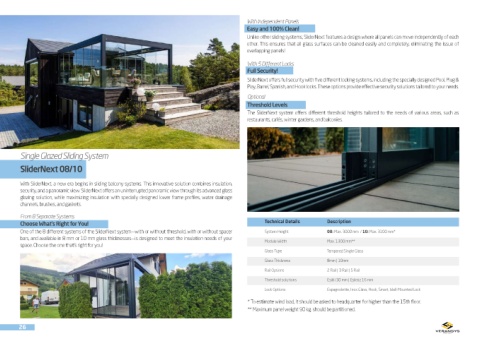

Page 26 - Veransys Catalogue ENG_compressed

With Independent Panels
Easy and 100% Clean!
Unlike other sliding systems, SliderNext features a design where all panels can move independently of each
other. This ensures that all glass surfaces can be cleaned easily and completely, eliminating the issue of
overlapping panels!

With 5 Different Locks
Full Security!
SliderNext offers full security with five different locking systems, including the specially designed Pool, Plug &
Play, Barrel, Spanish, and Hook locks. These options provide effective security solutions tailored to your needs.
Optional
Threshold Levels
The SliderNext system offers different threshold heights tailored to the needs of various areas, such as
restaurants, cafés, winter gardens, and balconies.

Single Glazed Sliding System

SliderNext 08/10

With SliderNext, a new era begins in sliding balcony systems. This innovative solution combines insulation,
security, and a panoramic view. SliderNext offers an uninterrupted panoramic view through its advanced glass
glazing solution, while maximizing insulation with specially designed lower frame profiles, water drainage
channels, brushes, and gaskets.

From 8 Separate Systems
Choose What’s Right for You! Technical Details Description
One of the 8 different systems of the SliderNext system—with or without threshold, with or without spacer System Height 08: Max. 3000 mm / 10: Max. 3100 mm*
bars, and available in 8 mm or 10 mm glass thicknesses—is designed to meet the insulation needs of your Module Width Max. 1300 mm**
space. Choose the one that’s right for you!
Glass Type Tempered Single Glass

Glass Thickness 8mm | 10mm
Rail Options 2 Rail | 3 Rail | 5 Rail
Threshold solutions Eşikli 30 mm | Eşiksiz 16 mm
Lock Options Espagnolette, Inox Glass, Hook, Smart, Wall-Mounted Lock

* To estimate wind load, it should be asked to headquarter for higher than the 15th floor.
** Maximum panel weight 90 kg. should be partitioned.

26
